DIY Clock MCDFL Mechanism Long Shaft Silent Table Clocks Movement Replacement Clockwork Sweep Quartz Watch for Mechanic Parts

$8.99 (-84%)

20358 in stock

Clock Hands Set 01Clock Hands Set 02Clock Hands Set 03Clock Hands Set 04Clock Hands Set 05Clock Hands Set 06Clock Hands Set 07Clock Hands Set 08Clock Hands Set 09Clock Hands Set 10Clock Hands Set 11Clock Hands Set 12Clock Hands Set 13Clock Hands Set 14Clock Hands Set 15Clock Hands Set 16Clock Hands Set 17
12mm Shaft Length15mm Shaft Length18mm Shaft Length20mm Shaft Length22mm Shaft Length28mm Shaft Length
Clear
Compare
SKU: 1005002539025592 Categories: , ,



This is a big bonus of 1 clock movement with 3 pack stylish clock hands kit from MCDFL for you to pick out the style that look best to keep your favorite clocks running at no additional charge.
MCDFL clock hands will fit all clock dial in different diameter and the diy clock mechanism for wall hours provides quick and easy fix for your clock, you too can be a clock maker. Save an expensive clock and your old clock is now running again in your house with wonderful memories.
Fit for cross-stitch, three-dimensional embroidery, craft clock, quartz wall clock and DIY frame-less draw clock, etc.
Good handwork material to make a clock by yourself, perfect DIY clock kit, clock parts accessories, clock accessories.

Specification

Clock Mechanism Case Size: approx. 56 x 56 x 16 mm (2.2 x 2.2 x 0.63 in)

Second Hand Motion: Sweeping

Accuracy Within ± 30 seconds deviation each month (in normal temperature)

Battery: One 1.5V AA Carbon battery (not included)

Please DO NOT USE Alkaline battery, Rechargeable batteries, they will damage the clock movement.

Clock Hands Set: More Choices, Suitable for Different Clock Styles
Clock Hands Colors: Black, White, Gold, Silver, Red
Clock Hands Material: Aluminum and Brass

Features:

Good clock replacement:
This kit is good size replacement both in terms of the shaft and the size of the hands. It can be a replacement for your broken clock.

Simple style clock movement:
It can match to diverse colors, patterns, shapes clock panel, it will not stand out, good quartz movement will work well. Simple design, easy to use.

Wide application:
You are enable to use it to repair, replace or make a home clock; Applicable to cross-stitch, three-dimensional embroidery, craft home clock, frame-less draw clock, clockwork, etc. Perfect DIY clock kit, clock accessories, clock parts accessories.

Accurate Time Keeping and Quiet Motor

The long shaft clock mechanism silent clockwork offers great accuracy and dependability, equipped with sweeping motion, no ticking and will provide you with a quiet environment.

We Have 6 Different Shaft Length Movements

If you want to replace your old clock movement clockwork, carefully measure the clock movement shaft length. Clock mechanism long shaft can fits more thicker clock dial.

If you still can’t confirm which one is right for you. Please refer to our picture, take a photo of shaft part and hands size, we will help you confirm.

Total Shaft Length: 12 mm (0.47 inch)
Thread Length: 6 mm (0.24 inch)
Suitable for: 1 – 2 mm ( 0.04 – 0.08 inch ) thickness clock panel

Total Shaft Length: 15 mm (0.59 inch)
Thread Length: 8 mm (0.32 inch)
Suitable for: 2 – 3 mm ( 0.08 – 0.12 inch ) thickness clock panel

Total Shaft Length: 18 mm (0.71 inch)
Thread Length: 11 mm (0.43 inch)
Suitable for: 3 – 7 mm ( 0.12 – 0.28 inch ) thickness clock panel

Total Shaft Length: 20 mm (0.79 inch)
Thread Length: 13 mm (0.51 inch)
Suitable for: 4 – 8 mm ( 0.16 – 0.32 inch ) thickness clock panel

Total Shaft Length: 22 mm (0.87 inch)
Thread Length: 15 mm (0.59 inch)
Suitable for: 9 – 13 mm ( 0.35 – 0.51 inch ) thickness clock panel

Total Shaft Length: 28 mm (1.1 inch)
Thread Length: 21 mm (0.83 inch)
Suitable for: 12 – 16 mm ( 0.47 – 0.63 inch ) thickness clock panel

How to Get the Right Replacement

We have 6 different clock movements.

They have the same shaft diameter.

But their shaft length are different.

If you don’t know what the shaft length and shaft diameter are, please refer to the picture above.

Why choose MCDFL clock movement?

This set includes 1 high precision clock movement with 3 pack different stylish clock hands kit.
You can pick out the style that looks best to keep your favorite clocks running at no additional charge.
With MCDFL clock hands & quartz clock mechanism kit combo that provides a quick and easy fix for your clock, gift choice for clockmaker lover. Perfect DIY clock kit, clock parts accessories.

We Have Many Choices of Clock Hands Suitable for Different Clock Styles

Clock Hands Set #01

Not Suitable for Clock Face Diameter Less Than 200 mm / 7.87 inch

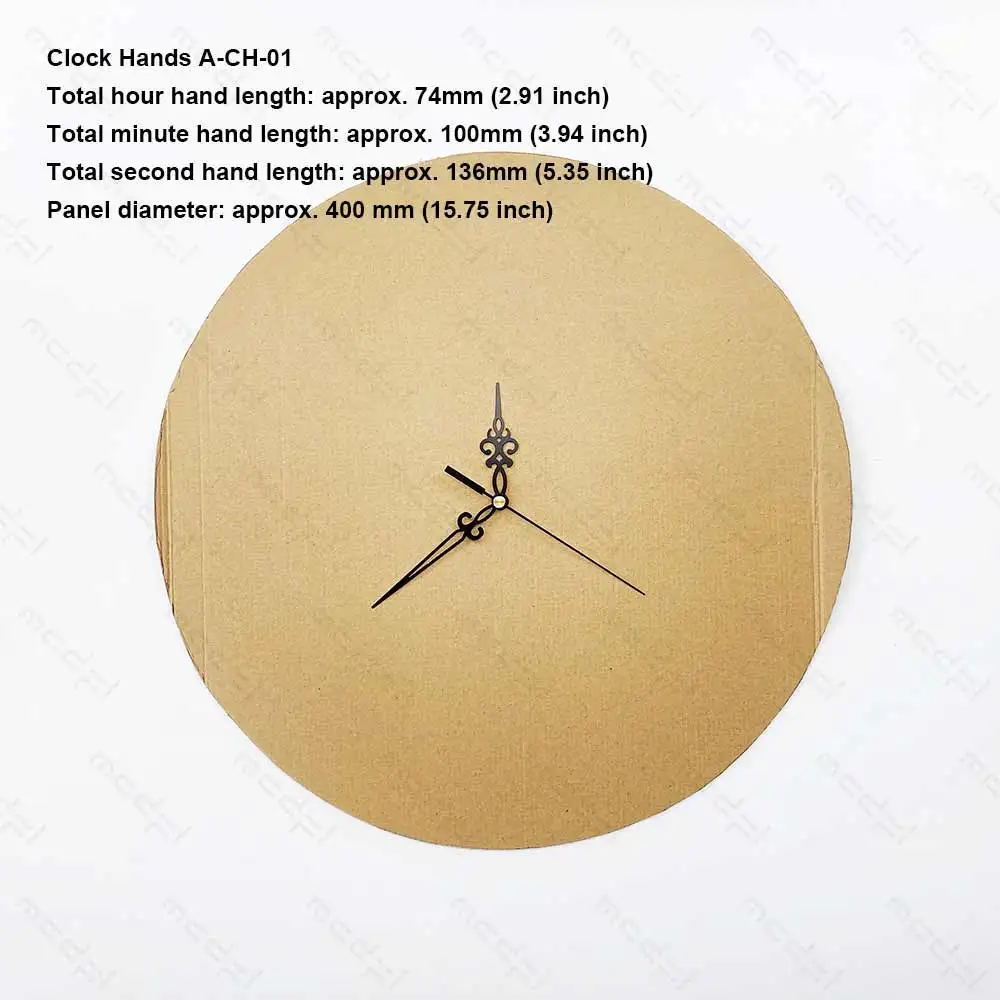

A-CH-01
Total hour hand length: approx.74mm(2.91inch)
Total minute hand length: approx.100mm(3.94inch)
Total second hand length: approx.136mm(5.35inch)

A-CH-02
Total hour hand length: approx.81mm(3.19inch)
Total minute hand length: approx.103mm(4.06inch)
Total second hand length: approx.125mm(4.92inch)

A-CH-03
Total hour hand length: approx.76mm(2.99inch)
Total minute hand length: approx.100mm(3.94inch)
Total second hand length: approx.125mm(4.92inch)

Clock Hands Set #02

Not Suitable for Clock Face Diameter
Less Than 190 mm / 7.48 inch

A-CH-04
Total hour hand length: approx.81mm(3.19inch)
Total minute hand length: approx.104mm(4.09inch)
Total second hand length: approx.125mm(4.92inch)

A-CH-05
Total hour hand length: approx.65mm(2.56inch)
Total minute hand length: approx.90mm(3.54inch)
Total second hand length: approx.125mm(4.92inch)

A-CH-06
Total hour hand length: approx.65mm(2.56inch)
Total minute hand length: approx.87mm(3.43inch)
Total second hand length: approx.112mm(4.41inch)

Clock Hands Set #03

Not Suitable for Clock Face Diameter
Less Than 230 mm / 9.06 inch

A-CH-07
Total hour hand length: approx.74mm(2.91inch)
Total minute hand length: approx.102mm(4.02inch)
Total second hand length: approx.132mm(5.2inch)

A-CH-08
Total hour hand length: approx.86mm(3.39inch)
Total minute hand length: approx.118mm(4.65inch)
Total second hand length: approx.108mm(4.25inch)

A-CH-09
Total hour hand length: approx.86mm(3.39inch)
Total minute hand length: approx.118mm(4.65inch)
Total second hand length: approx.108mm(4.25inch)

Clock Hands Set #04

Not Suitable for Clock Face Diameter
Less Than 200 mm / 7.84 inch

A-CH-10
Total hour hand length: approx.70mm(2.76inch)
Total minute hand length: approx.100mm(3.94inch)
Total second hand length: approx.124mm(4.88inch)

A-CH-11
Total hour hand length: approx.70mm(2.76inch)
Total minute hand length: approx.100mm(3.94inch)
Total second hand length: approx.124mm(4.88inch)

A-CH-12
Total hour hand length: approx.70mm(2.76inch)
Total minute hand length: approx.100mm(3.94inch)
Total second hand length: approx.124mm(4.88inch)

Clock Hands Set #05

Not Suitable for Clock Face Diameter
Less Than 180 mm / 7.09 inch

A-CH-13
Total hour hand length: approx.65mm(2.56inch)
Total minute hand length: approx.96mm(3.78inch)
Total second hand length: approx.104mm(4.02inch)

A-CH-14
Total hour hand length: approx.69mm(2.72inch)
Total minute hand length: approx.92mm(3.62inch)
Total second hand length: approx.95mm(3.74inch)

A-CH-15
Total hour hand length: approx.65mm(2.56inch)
Total minute hand length: approx.96mm(3.78inch)
Total second hand length: approx.104mm(4.02inch)

Clock Hands Set #06

Not Suitable for Clock Face Diameter
Less Than 150 mm / 5.9 inch

A-CH-16
Total hour hand length: approx.55mm(2.17inch)
Total minute hand length: approx.74mm(2.91inch)
Total second hand length: approx.95mm(3.74inch)

A-CH-17
Total hour hand length: approx.55mm(2.17inch)
Total minute hand length: approx.74mm(2.91inch)
Total second hand length: approx.95mm(3.74inch)

A-CH-18
Total hour hand length: approx.55mm(2.17inch)
Total minute hand length: approx.74mm(2.91inch)
Total second hand length: approx.95mm(3.74inch)

Clock Hands Set #07

Not Suitable for Clock Face Diameter
Less Than 110 mm / 4.33 inch

A-CH-19
Total hour hand length: approx.30mm(1.18inch)
Total minute hand length: approx.39mm(1.54inch)
Total second hand length: approx.42mm(1.65inch)

A-CH-20
Total hour hand length: approx.45mm(1.77inch)
Total minute hand length: approx.55mm(2.17inch)
Total second hand length: approx.43mm(1.69inch)

A-CH-21
Total hour hand length: approx.35mm(1.38inch)
Total minute hand length: approx.43mm(1.69inch)
Total second hand length: approx.43mm(1.69inch)

Clock Hands Set #08

Not Suitable for Clock Face Diameter
Less Than 120 mm / 4.72 inch

A-CH-22
Total hour hand length: approx.43mm(1.7inch)
Total minute hand length: approx.55mm(2.17inch)
Total second hand length: approx.44mm(1.73inch)

A-CH-23
Total hour hand length: approx.38mm(1.5inch)
Total minute hand length: approx.52mm(2.05inch)
Total second hand length: approx.58mm(2.28inch)

A-CH-24
Total hour hand length: approx.50mm(1.97inch)
Total minute hand length: approx.62mm(2.44inch)
Total second hand length: approx.59mm(2.32inch)

Clock Hands Set #09

Not Suitable for Clock Face Diameter
Less Than 300 mm / 11.81 inch

A-CH-25
Total hour hand length: approx.122mm(4.8inch)
Total minute hand length: approx.207mm(8.15inch)
Total second hand length: approx.152mm(5.98inch)

A-CH-26
Total hour hand length: approx.102mm(4.02inch)
Total minute hand length: approx.141mm(5.55inch)
Total second hand length: approx.183mm(7.21inch)

A-CH-27
Total hour hand length: approx.142mm(5.59inch)
Total minute hand length: approx.185mm(7.28inch)
Total second hand length: approx.183mm(7.21inch)

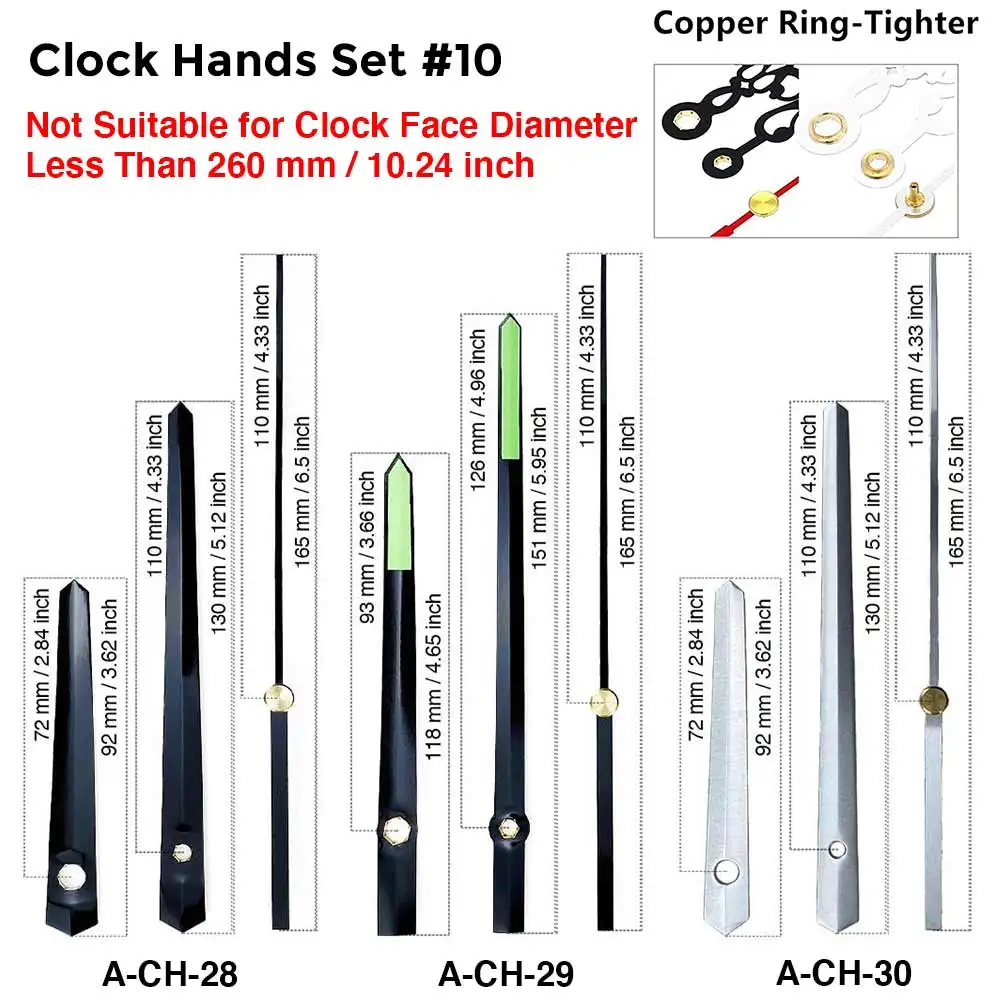

Clock Hands Set #10

Not Suitable for Clock Face Diameter
Less Than 260 mm / 10.24 inch

A-CH-28
Total hour hand length: approx.92mm(3.62inch)
Total minute hand length: approx.130mm(5.12inch)
Total second hand length: approx.165mm(6.5inch)

A-CH-29
Total hour hand length: approx.118mm(4.65inch)
Total minute hand length: approx.151mm(5.95inch)
Total second hand length: approx.165mm(6.5inch)

A-CH-30
Total hour hand length: approx.92mm(3.62inch)
Total minute hand length: approx.130mm(5.12inch)
Total second hand length: approx.165mm(6.5inch)

Clock Hands Set #11

Not Suitable for Clock Face Diameter
Less Than 250 mm / 9.84 inch

A-CH-31
Total hour hand length: approx.115mm(4.53inch)
Total minute hand length: approx.145mm(5.71inch)
Total second hand length: approx.152mm(5.98inch)

A-CH-32
Total hour hand length: approx.115mm(4.53inch)
Total minute hand length: approx.145mm(5.71inch)
Total second hand length: approx.152mm(5.98inch)

A-CH-33
Total hour hand length: approx.115mm(4.53inch)
Total minute hand length: approx.145mm(5.71inch)
Total second hand length: approx.152mm(5.98inch)

Clock Hands Set #12

Not Suitable for Clock Face Diameter
Less Than 250 mm / 9.84 inch

A-CH-34
Total hour hand length: approx.115mm(4.53inch)
Total minute hand length: approx.145mm(5.71inch)
Total second hand length: approx.152mm(5.98inch)

A-CH-35
Total hour hand length: approx.115mm(4.53inch)
Total minute hand length: approx.145mm(5.71inch)
Total second hand length: approx.152mm(5.98inch)

A-CH-36
Total hour hand length: approx.115mm(4.53inch)
Total minute hand length: approx.145mm(5.71inch)
Total second hand length: approx.152mm(5.98inch)

Clock Hands Set #13

Not Suitable for Clock Face Diameter
Less Than 190 mm / 7.48 inch

A-CH-37
Total hour hand length: approx.65mm(2.56inch)
Total minute hand length: approx.87mm(3.43inch)
Total second hand length: approx.123mm(4.84inch)

A-CH-38
Total hour hand length: approx.65mm(2.56inch)
Total minute hand length: approx.87mm(3.43inch)
Total second hand length: approx.123mm(4.84inch)

A-CH-39
Total hour hand length: approx.65mm(2.56inch)
Total minute hand length: approx.87mm(3.43inch)
Total second hand length: approx.123mm(4.84inch)

Clock Hands Set #14

Not Suitable for Clock Face Diameter
Less Than 100 mm / 3.94 inch

A-CH-40
Total hour hand length: approx.26mm(1.02inch)
Total minute hand length: approx.36mm(1.42inch)
Total second hand length: approx.59mm(2.32inch)

A-CH-41
Total hour hand length: approx.41mm(1.61inch)
Total minute hand length: approx.58mm(2.28inch)
Total second hand length: approx.59mm(2.32inch)

A-CH-42
Total hour hand length: approx.41mm(1.61inch)
Total minute hand length: approx.58mm(2.28inch)
Total second hand length: approx.26mm(1.02inch)

Clock Hands Set #15

Not Suitable for Clock Face Diameter
Less Than 110 mm / 4.33 inch

A-CH-43
Total hour hand length: approx.45mm(1.77inch)
Total minute hand length: approx.57mm(2.24inch)
Total second hand length: approx.73mm(2.87inch)

A-CH-44
Total hour hand length: approx.45mm(1.77inch)
Total minute hand length: approx.57mm(2.24inch)
Total second hand length: approx.73mm(2.87inch)

A-CH-45
Total hour hand length: approx.45mm(1.77inch)
Total minute hand length: approx.57mm(2.24inch)
Total second hand length: approx.73mm(2.87inch)

Clock Hands Set #16

Not Suitable for Clock Face Diameter
Less Than 190 mm / 7.48 inch

A-CH-46
Total hour hand length: approx.65mm(2.56inch)
Total minute hand length: approx.91mm(3.58inch)
Total second hand length: approx.122mm(4.8inch)

A-CH-47
Total hour hand length: approx.65mm(2.56inch)
Total minute hand length: approx.91mm(3.58inch)
Total second hand length: approx.122mm(4.8inch)

A-CH-48
Total hour hand length: approx.65mm(2.56inch)
Total minute hand length: approx.91mm(3.58inch)
Total second hand length: approx.120mm(4.72inch)

Clock Hands Set #17

Not Suitable for Clock Face Diameter
Less Than 200 mm / 7.87 inch

A-CH-49
Total hour hand length: approx.65mm(2.56inch)
Total minute hand length: approx.87mm(3.43inch)
Total second hand length: approx.123mm(4.84inch)

A-CH-50
Total hour hand length: approx.67mm(2.64inch)
Total minute hand length: approx.102mm(4.02inch)
Total second hand length: approx.148mm(5.83inch)

A-CH-51
Total hour hand length: approx.65mm(2.56inch)
Total minute hand length: approx.91mm(3.58inch)
Total second hand length: approx.122mm(4.8inch)

How to Get the Right Clock Hands

Clock hands of different lengths are suitable for clock dials of different diameters, please refer to the picture below.

For example:
Clock Hands A-CH-01
Total hour hand length: approx. 74mm (2.91 inch)
Total minute hand length: approx. 100mm (3.94 inch)
Total second hand length: approx. 136mm (5.35 inch)

Panel diameter1: approx. 100 mm (3.94 inch)
Panel diameter2: approx. 200 mm (7.87 inch)
Panel diameter3: approx. 300 mm (11.81 inch)
Panel diameter4: approx. 400 mm (15.75 inch)
Panel diameter5: approx. 500 mm (19.69 inch)

If you still can’t confirm which one is right for you. Please feel free to contact us.

Package Included:

1 x Quartz clock movement
3 x Minute hand
3 x Hour hand
3 x Second hand
1 x Rubber gasket
1 x Brass washer
1 x Brass hex nut
1 x Metal hook
1 x Mounting hook

We Have Excellent Packaging Solutions

We will use different packaging solutions, based on the number of orders you place, the length of the clock hands, the shaft length of the clock mechanism.

Installation Steps

1. Place metal hook over shaft.
2. Place plastic washer over shaft.
3. Insert shaft through clock face.
4. Place dial plate brass washer over shaft.
5. Attach dail fixing brass hex nut.
6. Gently press hour hand onto shaft at 12:00 position.
7. Place minute hand over shaft at 12:00 position.
8. Gently screw minute nut in place.

Notes:

– please check the size before buying.
– Please peel off the resist film of the clock hands.
– Be careful not to bend the hands with too much pressure.
– When you install them, please keep the hour hand and minute hand parallel
– Do not tighten the brass hex nut too tight
– Press hard to get all clock hands in place
– Please do not use Alkaline battery, rechargeable battery, or they will damage the clock movement.

The pointers are made of thin aluminum or iron plate after one time punch, although the packaging is good, but still can not avoid being bent during long-distance transportation. If it occurs the situation, please slightly smooth it straight by fingers. It doesn’t affect usage.

The installation of pointers is skillful. Three needles should be installed separately and do not overlap as much as possible. Otherwise it will affect the performance that these pointers may not walk. Please read the notes carefully before your purchase.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand, Thank you.



About Battery

Please Do Not use a battery more than 1.5V or a high electric current battery, such as a rechargeable battery.

The Best Option is a Carbon, Alkaline Battery or a low electric current battery (less than 500 ma)

Why we should use Carbon, Alkaline Batteries or low electric current batteries on most of home clocks?

Most of clocks only need very low electric current, especially for quartz clock for home. If use a high electric current battery such as
a rechargeable battery, it may damage the clock movement, cause inaccurate time, or even burn out the clock movement, affecting the service life.

Buyer Questions & Answers

Question: Is the second hand ticking or smooth?
Answer: Smoothly goes and does not tickle-Super! without noise!

Question: Is there a Battery cover with this?
Answer: This is no battery cover. Battery is held in tight via the springiness of the contacts. Additionally, when the clock is hung, the back of the quartz clock movement mechanism will be against the wall.

Question: Does the quartz movement snap in?
Answer: Not exactly. Your clock will have a small hole that the movement shaft will fit into. It then screws to a bolt provided with the kit. Make sure that you order a wall clock movement with a shaft that will be long enough for your clock for home.

Question: Can this clock mechanism kit be made to run backwards (counterclockwise)?
Answer: Hello, it can not run backwards (counterclockwise). Thanks.

Question: Can I get just the silent clock movement no hands?
Answer: Why not contact the seller? Maybe they are selling quartz mechanism only

Question: What is the diameter of hole needed in the clock panel?
Answer: IIRC it’s a standard 5/16″ center.

Question: what material are the wall clock hands?
Answer: The hands feel like tin or thin metal, very light weight, could easily bend. i suppose they have to be fairly light to move properly. The large clock mechanism for wall hours has worked great, very pleased with purchase.

Question: Can i buy replacement parts for this product? Specifically the very last nut on the assembly
Answer: It’s cheap, just buy the whole thing. Save it to your wish list.

Question: What size battery please?
Answer: 1.5 V AA battery.

Question: Are the clock hands balanced? This seems to be a big reason for clock motor failure.
Answer: So far so good. They work as they should. As far as balanced, there is a counter weight on the longer minute hand. The one’s I replaced had no counter balance so I am thinking that this should take care of the failure.

Question: What are shafts? I’m so confused I dont know which one to get. My home clock hour hand is 2 inches.
Answer: The shaft is the piece that goes through the clock and to which the hands attach. Measure the existing shaft and compare.

Question: Will this work for a radio controlled clock?
Answer: I would think not. This is a simple, battery-operated silent clock mechanism silent for clock like most clocks today. We have a large, decorative wall clock that cost $150+ and were dismayed when it stopped working. This was a cheap, effective fix and, so far, so good 🙂

Question: Are the hands metal or plastic?
Answer: Definitely metal, kind of a thin, light aluminum.

Question: Can the unit be installed without the metal hanging hook?
Answer: Yes it can be used with or without.

Question: I cannot get the hour or minute hands on to the shaft. They are the original hands from the clock. Why not ??
Answer: You have to make sure shaft width of clock movement is correct, match your old hands, If you are not sure, you can contact the seller, they will help you

Question: Can this be purchased with a metal hook for hanging?
Answer: Yes, will come with a metal hook

Question: Why can’t you use alkaline batteries?
Answer: Because the high-power alkaline battery will damage the quartz movement

Question: Can i use my own clock hands? (just use the clockwork mechanism for clock to replace an old one?)
Answer: You should be able to, because the hands are friction mounted If you can push it onto the shaft, and it will stay, then it should work

Additional information

Brand Name

MCDFL

Origin

CN(Origin)

Style

Brief

Model Number

Clock Mechanism MC911

Is Smart Device

No

Shape

Square

Material

Plastic & Metal

Diameter

5cm

Form

Single Face

Length

56mm

Weight

70g

Motivity Type

QUARTZ

Type

Wall Clocks

Wall Clock Type

15 mm Thick Plate

Pattern

abstract

Feature

Loudspeaker Mute

Applicable Placement

living room

Combination

Multi-piece set

Display Type

Needle

Width

56cm

Body Material

Plastic

Shaft Length 1

Total Shaft Length: 28mm(1.1inch), Thread Length: 21mm(0.83inch)

Shaft Length 2

Total Shaft Length: 22mm(0.87inch), Thread Length: 15mm(0.59inch)

Shaft Length 3

Total Shaft Length: 20mm(0.79inch), Thread Length: 13mm(0.51inch)

Shaft Length 4

Total Shaft Length: 18mm(0.71inch), Thread Length: 11mm(0.43inch)

Shaft Length 5

Total Shaft Length: 15mm(0.59inch), Thread Length: 8mm(0.32inch)

Shaft Length 6

Total Shaft Length: 12mm(0.47inch), Thread Length: 6mm(0.24inch)

Clock Motor

Quartz Clockwork

DIY Wall Clock

Essential Tools

Power Type

AA Battery (Not Included)

Function

Silent/Non Ticking/Mute

Clock Hands Set

More Choices, Suitable for Different Clock Styles

Type 1

Clock Mechanism Silent

Type 2

Silent Clock Mechanism

Type 3

Quartz Clock Movement

Type 4

Quartz Clock Movement Mechanism

Type 5

DIY Clock Kit

Type 6

Clock Parts Accessories

Type 7

Quartz Clock Mechanism

Type 8

Clockwork Mechanism

Type 9

DIY Clock Mechanism

Type 10

Clock Mechanism Kit

Type 11

Clock Mechanism Long Shaft

Type 12

Clock Mechanism Sweep

Dropship Suppliers

Drop Shipping/Wholesale

Wall Clock Hands Kit

Quartz Clock Mechanism DIY

Clock Mechanism Silent

Clock Mechanism Long Shaft Silent

Shipment

Free Shipping

Be the first to review “DIY Clock MCDFL Mechanism Long Shaft Silent Table Clocks Movement Replacement Clockwork Sweep Quartz Watch for Mechanic Parts”

Reviews

There are no reviews yet.

Main Menu
